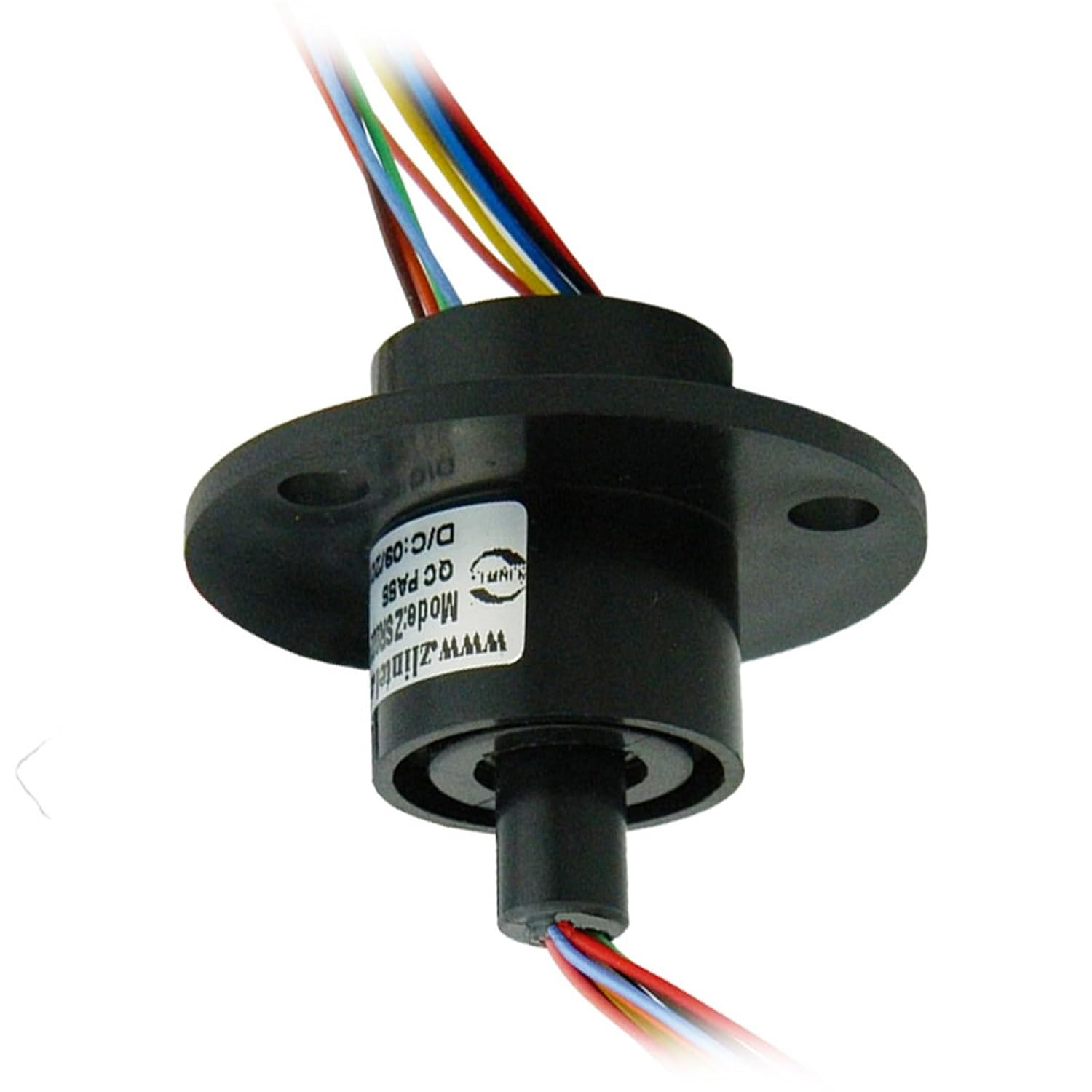

1PCS high-Speed Ball Conductive Slip Ring 12-Way 2A Collector Ring Rotary Joint Rotary Connector

1PCS high-speed ball conductive slip ring 12-way 2A collector ring rotary joint rotary connectorModel: ZSR022-12DScope of application: Packaging machinery, unmanned winding machines, automated machine tools, intelligent warehousing robotsName of electrical equipment: packaging machinery, unmanned winding machine, automated machine tools, intelligent warehousing robotProtection level: IP51Shell material: engineering plasticContact material: gold-goldmodelZSR022-12DNumber of channels12Rated current2 A/wayRated voltage240VAC/DCSpeed0-200rpmouter diameterø22mmContact materialPrecious metalShell materialEngineering plasticsdynamic resistanceMinimum 1mΩelectrical noise<;10mΩ,50mA,5RPMWire specificationsAWG16 silver plated TeflonCompressive strength500VDC@50Hz,10sWire lengthStandard 250mmDielectric strength500mΩ@500VDC,10sProtection levelIP54working temperature-20℃ ~+60℃Working humidity10%-85% RHShockproof levelMIL-STD-810EWhy choose slip rings?When the connection between electrical and mechanical parts needs to provide 360° unrestricted continuous electrified rotation, we usually encounter the problem of wire twisting and twisting. At this time, the use of conductive slip rings can completely solve the problem of twisting or twisting of wires. , with the continuous innovation and advancement of technology, conductive slip rings can simultaneously provide large current power transmission and signal rotation connection.

• 1PCS high-speed ball conductive slip ring 12-way 2A collector ring rotary joint rotary connector
