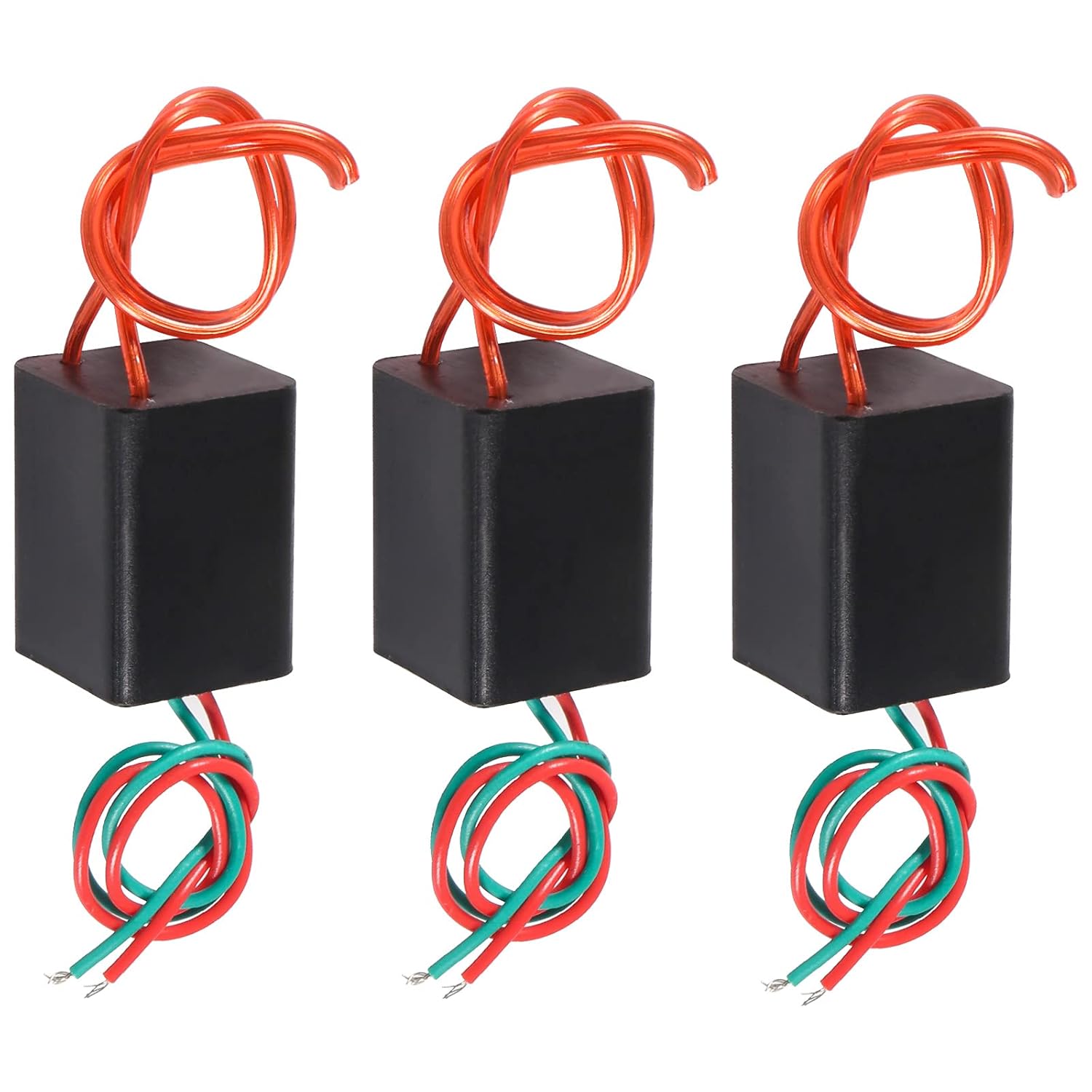

3Pcs DC 6V-12V to 1000kv 1000000v 2A-5A Boost Step Up Power Module High Voltage Generator DC Transformer Converter Coil Module

Input Voltage: 6V to 12V DC Input Current: 2A to 5A (related to voltage) Output Voltage: About 500KV to 1000KV Input Cable Length: About 100mm(red is positive) Output Cable Length: About 100mm Arc Discharge Distance: 10mm to 20mm Pakage include: 3 x 1000kv high voltage generator Note: Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity. The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily. The module has high power and inner heat is not easily dissipated, so it can not work continuously for long time (<10 seconds each time). The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can output maximum power. Recommended battery capacity is above 2000mA, or above 4000mA if possible.

• The high-voltage module is made by using the tesla coil principle, and outputs high-voltage pulse high-voltage current, small volume, high efficiency, simple peripheral circuit, the peripheral circuit is simple, simply connect the switch and battery, and the discharge intensity is great.
• DC boost step up power module high voltage generator input voltage: DC 6V to 12V. input current: 2A-5A, output voltage: 500KV~1000KV (please pay attention to safety).
• The input voltage of the arc generator is DC 6-12V and output dc 1000KV high voltage, input wiring: red - positive; green - negative; output wiring: the other side same color cable.
• 1000kv boost step up module can be used as a scientific experiment, electronic equipment, negative ion generator, high voltage source in the production of small science and so on.
• The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can output maximum power. Recommended battery capacity is above 2000mA, or above 4000mA if possible.
