UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System]
UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System] UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System]

UL Listed 12Pcs 12 Amp Power Relay 110V-120V AC with Test Button, SPDT 1NO 1NC 5Pin Socket Base with Led Light [Applicable for DIN Rail System]

flash sale iconLimited Time Sale
Until the end
20
29
46

US$51.30 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$34.20
quantity

Product details

Management number 215636433 Release Date 2026/04/12 List Price US$34.20 Model Number 215636433
Category
  1. Industrial & Scientific
  2. Industrial Electrical

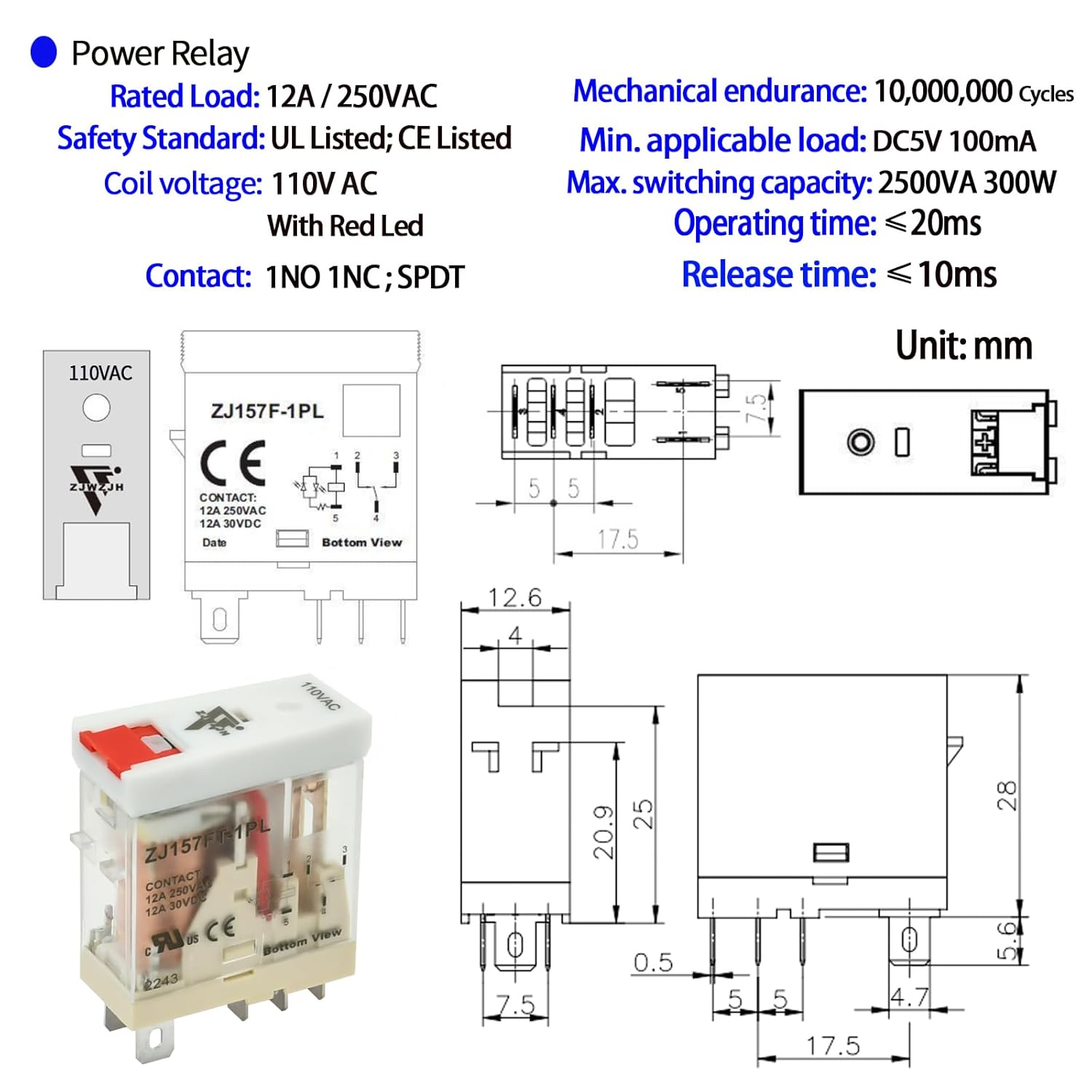

Package include : Package Content : 6 Electromagnetic Relay, 6 Socket, 2 x Fixing clamp , 1 x DIN Rail, 4 x Screws. Relay Features 1.Small volume, 38.8*12.6*30.4mm, Easy installation 2.Get an electric shock load big: 12A3.[Test key] can be used to manually adjust the instantaneous change of contact state.4.[Frosted shell] The relay adopts a frosted upgraded shell with a toothed structure at the top to increase friction and facilitate plugging.5.[See for safe use of electricity] LED indicator, red represents AC, green represents DC.6.[High quality materials] The relay is made of high quality materials with high sensitivity, strong conductivity, high current carrying capacity and stable overall performance.Contact DataRated Load:1NO 1NC SPDT,12A 250VAC /12A 30VDCMechanical endurance:10,000,000 Times;Electrical endurance:100,000 TimesRated carry current:8 AmpsMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. switching capacity: 1250VA 150WCharacteristicsOperating time ≤20msRelease time ≤10msInsulation resistance ≥1000mΩ （500VDC)Ambient operating temperature:-40℃～+70℃Weight: 123gAmbientl humidity:5%～85%RH

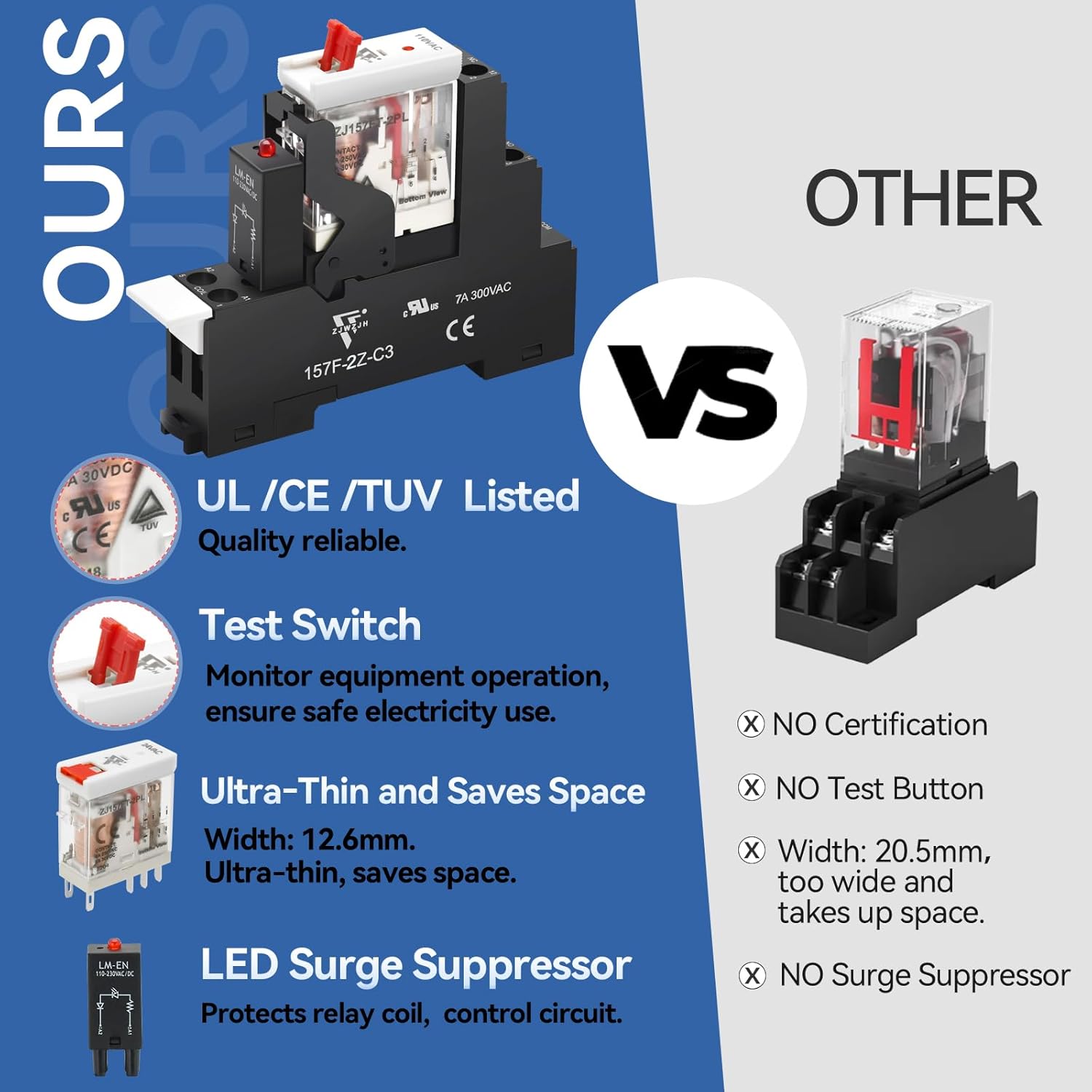

  • Our 110V Relay PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.
  • Relay: 110V-120V AC; Contact: SPDT 1 Normally Closed + 1 Normally Open,1 Poles; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
  • The relay is equipped with a red LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.
  • Package: 12 Pcs Power Relay ,12 Pcs Socket, 4 x Fixing clamp , 2 x DIN Rail(20cm/7.87"), 4 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
  • The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Model ZJ157FT-1P 110V12Pcs
Brand Name ZJWZJH
Part Number ZJ157FT-1P 110V12Pcs
Coil Voltage 110 Volts (AC)
Contact Type 1no 1nc
Manufacturer ZJWZJH
Mounting Type DIN Rail Mount
Connector Type Screw
Current Rating 12 Amps
Operation Mode ON OFF
Contact Material Silver Alloy
Specification Met CE, TUV, UL
Included Components 12 Pcs Power Relay and Socket
Warranty Description If you have any question, please be free to contact us.
Contact Current Rating 12 Amps
Upper Temperature Rating 70 Degrees Celsius
Maximum Switching Current 12 Amps
Maximum Switching Voltage 250 Volts (AC)
Minimum Switching Voltage 5 Volts (DC)
